Built to exceed the needs of detailers, fabricators, placers, and engineers, aSa CAD/Detailing combines the engineering design tools of Bentley ProStructures with aSa-developed applications for detailing and managing rebar information.
aSa software automates every step of the detailing process, from initial project setup to easy material takeoff directly from the drawing.
Eliminate tedious drawing tasks
Beam, Column, Linear Area, and many other detailing tools are built into the system. You enter the basics such as clearances and laps, and the program handles all the drawing and detailing.
reduce shortages & errors
Built-in calculations and error-checking help prevent mistakes. The system tracks each item, so you always know what is taken off and what remains.
accomodate fabricating and placing needs
Tag messages, special material groupings, and placer-specific reports allow you to help shop and field crews work more efficiently.
Solution Details
aSa CAD/Detailing gives you the competitive advantage. Rebar Detailing is simple, fast, and error-free; drawings are clear and placer-friendly; reports show up-to-the-minute job progress; and material is tracked through the shop and field via aSa’s integrated software products.
aSa.CAD Vault
Powerful add-on tool for organizing aSa AND third-party drawings and models.
Collaborate effortlessly across your enterprise: check in, check out, and request access to drawings shared by multiple users.
Track revision history and roll back to a previous version if needed.
Save all your aSa, ADDA, AllPlan, RebarCAD, Revit, and Tekla project files to the cloud directly from the aSa Project Manager interface. Vault data is secure and automatically backed up.
Videos: Experience CAD/Detailing
More CAD Detailing Videos
CAD/Detailing
CAD/Detallado (español)
Demo: Cross Reference
Demo: Linear Graphic
Tour
Solution Tour
Project Manager

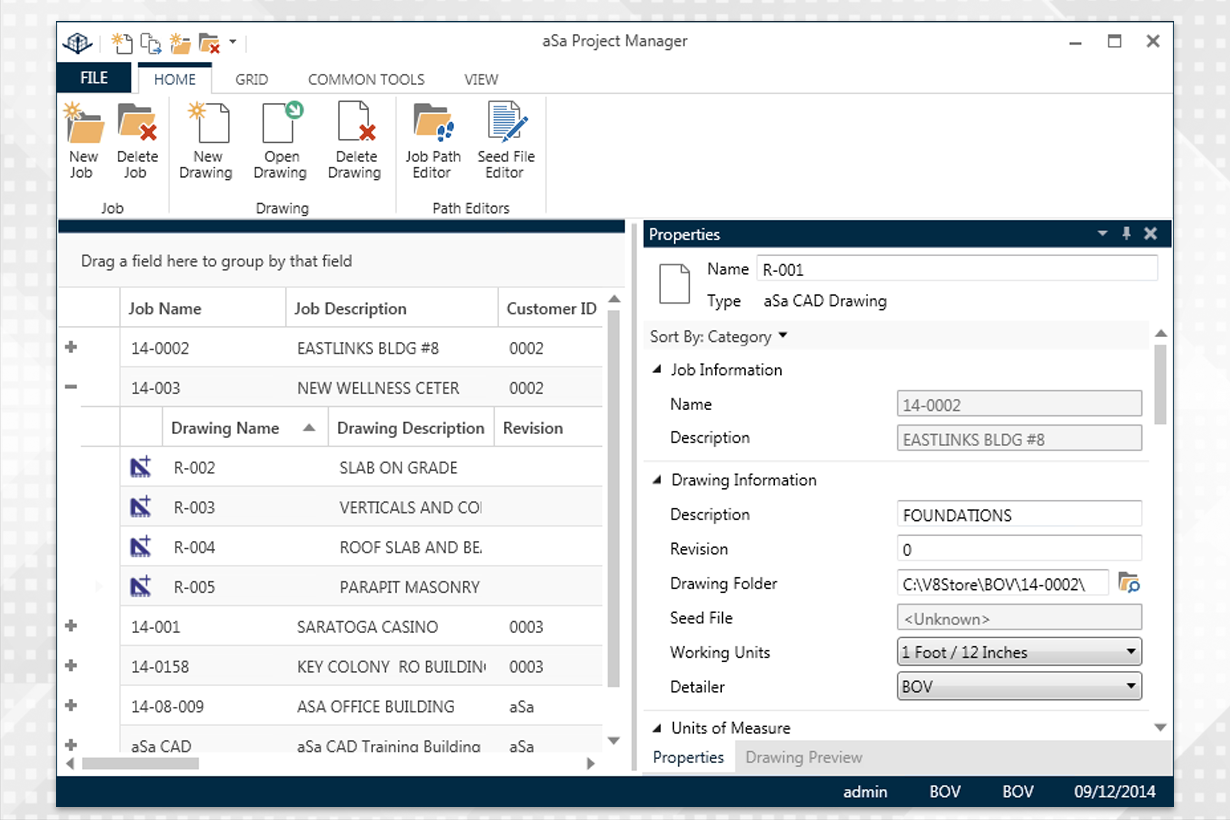

See all your 2D drawings and 3D models in one convenient front-end application

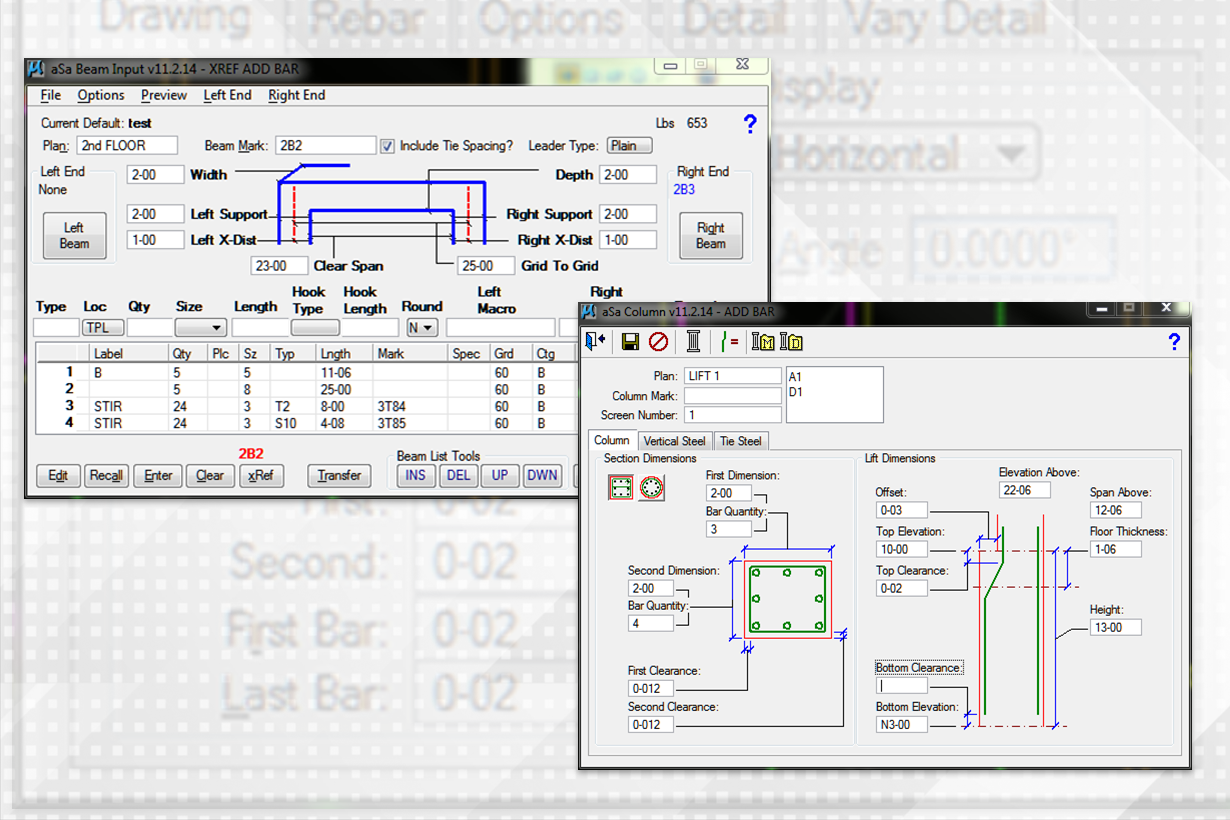

Detailing Tools
Automatically calculate and draw reinforcing for common structure types, such as linear steel, beams and columns

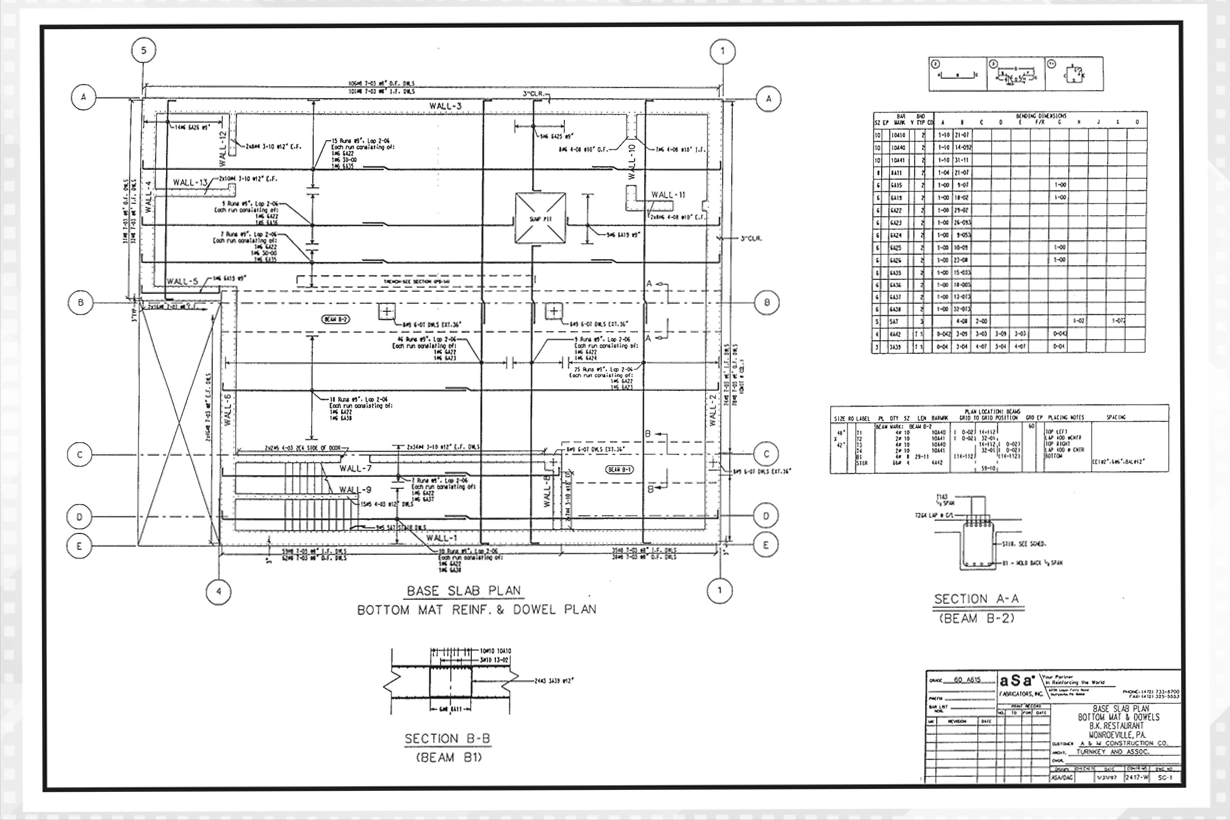

Easy-to-read drawings
Countless options for elevations, callouts, and schedules
Automatic Takeoff

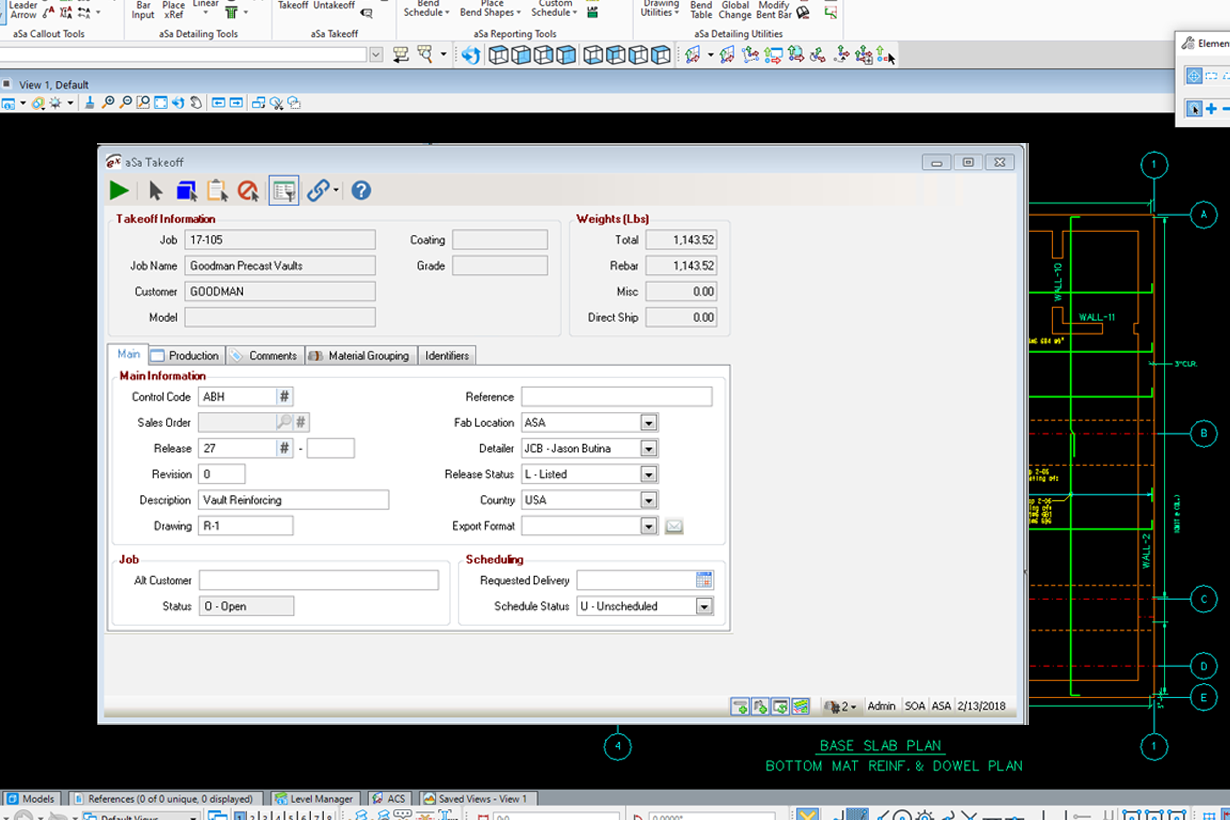

Create aSa.Studio orders by selecting an area on your drawing or applying filters (example: plan and section); taken off items are color coded on the drawing
