ProRebar

ProRebar® is an advanced 3D CAD software tool used to model, detail, and schedule reinforced concrete structures. In addition to improving project turn-around time, the system allows concrete and rebar to be fully realized components of each project’s vision via Building Information Modeling (BIM).

  VIDEO
  TOUR
  BROCHURE

Eliminate tedious drawing tasks

Built-in tools and templates allow you to model concrete and rebar quickly and accurately. Even complex shapes can be easily reinforced without the need to draw individual bars.

Connect to AsA DOWNSTREAM OPERATIONS

ProRebar has unparalleled connections to aSa’s suite of rebar applications, giving detailers access to key information — such as takeoff, fabricating, and mill cert data — for all the reinforcing contained in the model.

EASILY DETECT CONGESTION PROBLEMS

View modeled concrete and rebar from any angle or distance to find and correct congestion problems or design flaws before they become issues at the jobsite.

SHARE DATA WITH OTHER MODELING PRODUCTS

Bentley’s Integrated Structural Model (ISM) technology lets ProRebar share model data with other 3D tools, such as Revit®, STAAD®, and RAM®.

aSa.CAD Vault

Powerful add-on tool for organizing aSa AND third-party drawings and models.

Solution Details

The ProRebar package combines Bentley ProConcreteTM, a powerful 3D modeling engine, with special aSa tools designed for rebar fabricators and placing firms. Quickly and accurately model all components of your structure, including concrete, rebar, mesh, connectors, and other accessories. The system handles cast-in-place and precast concrete elements. ProRebar provides a database-level connection from the 3D model to downstream aSa operations.From a single ProRebar model, you can automatically generate 2D rebar placing drawings, bar bending schedules, and parts lists. Changes to the 3D model update all related drawings and documents.

Tour

Sol​ution Tour

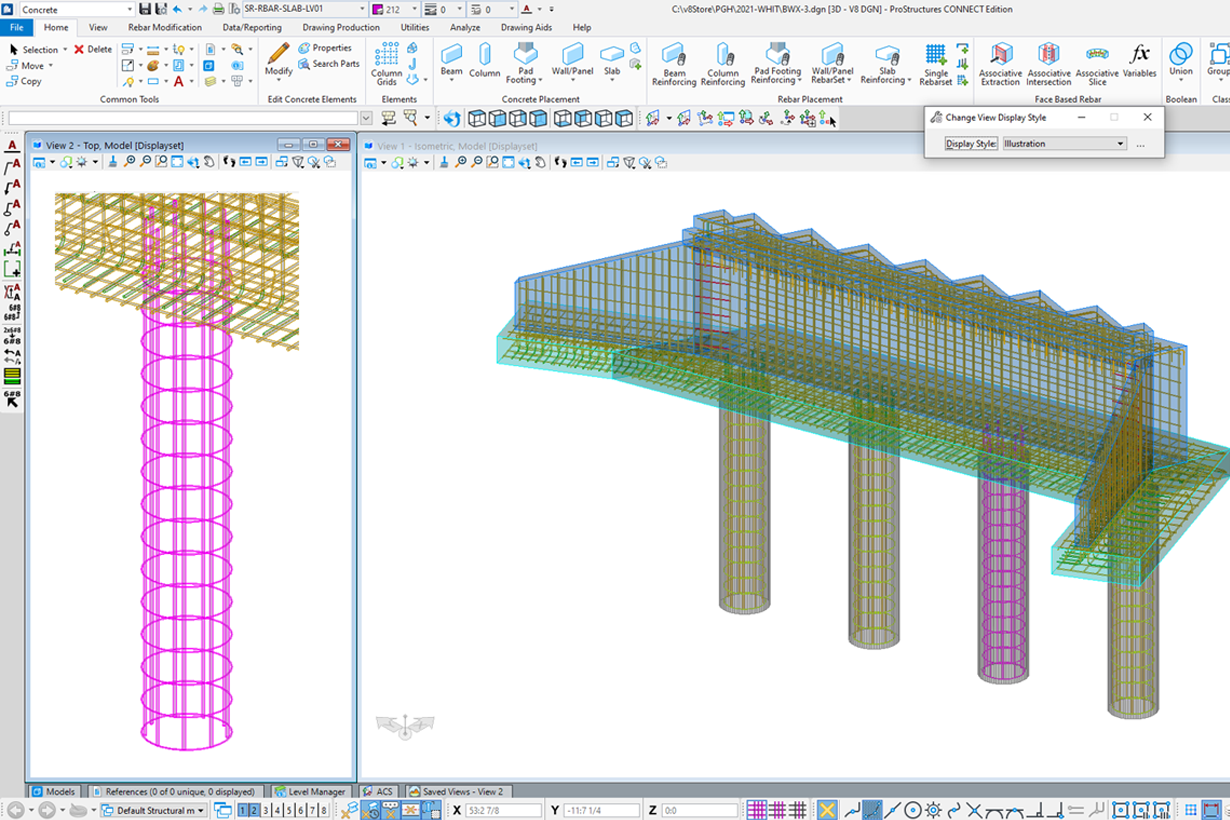

Powerful 3D Modeling

Powerful 3D Modeling

Quickly and accurately develop concrete and reinforcing

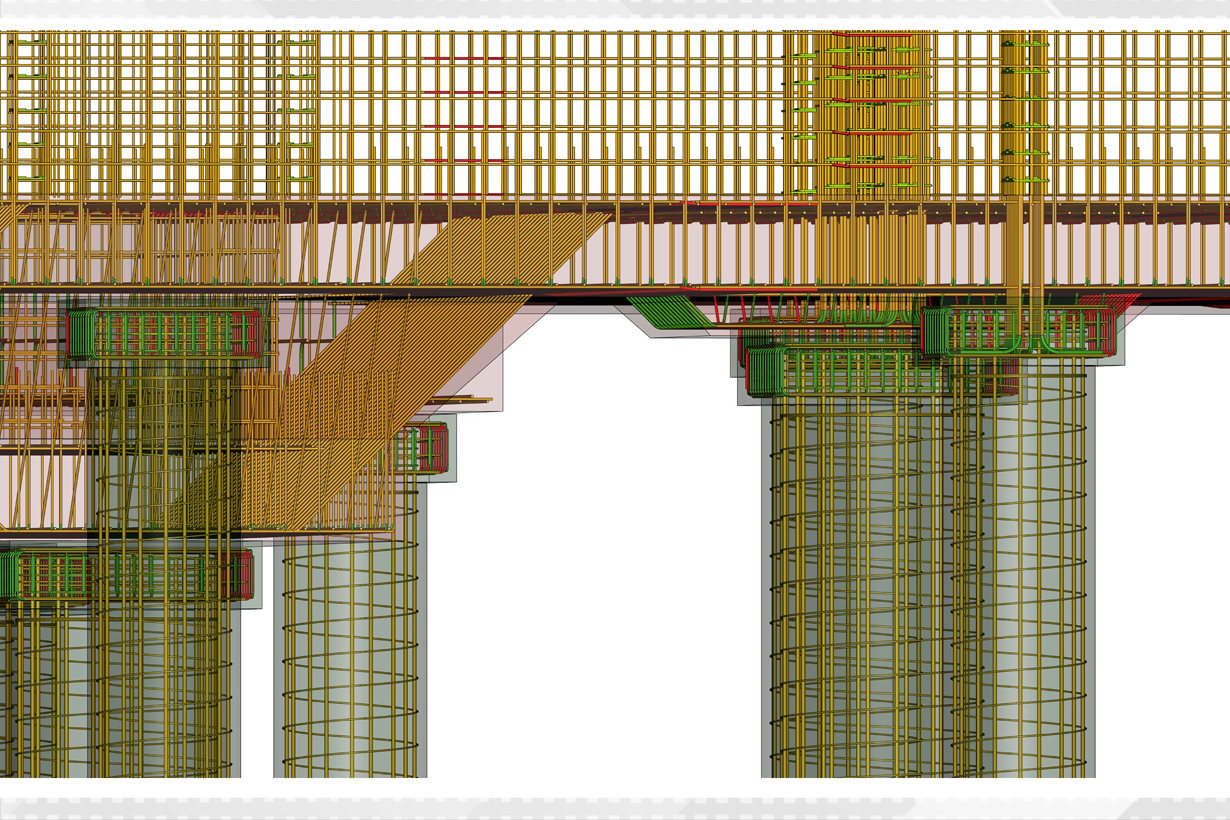

BIM Collaboration

BIM Collaboration

Visually communicate with other stakeholders

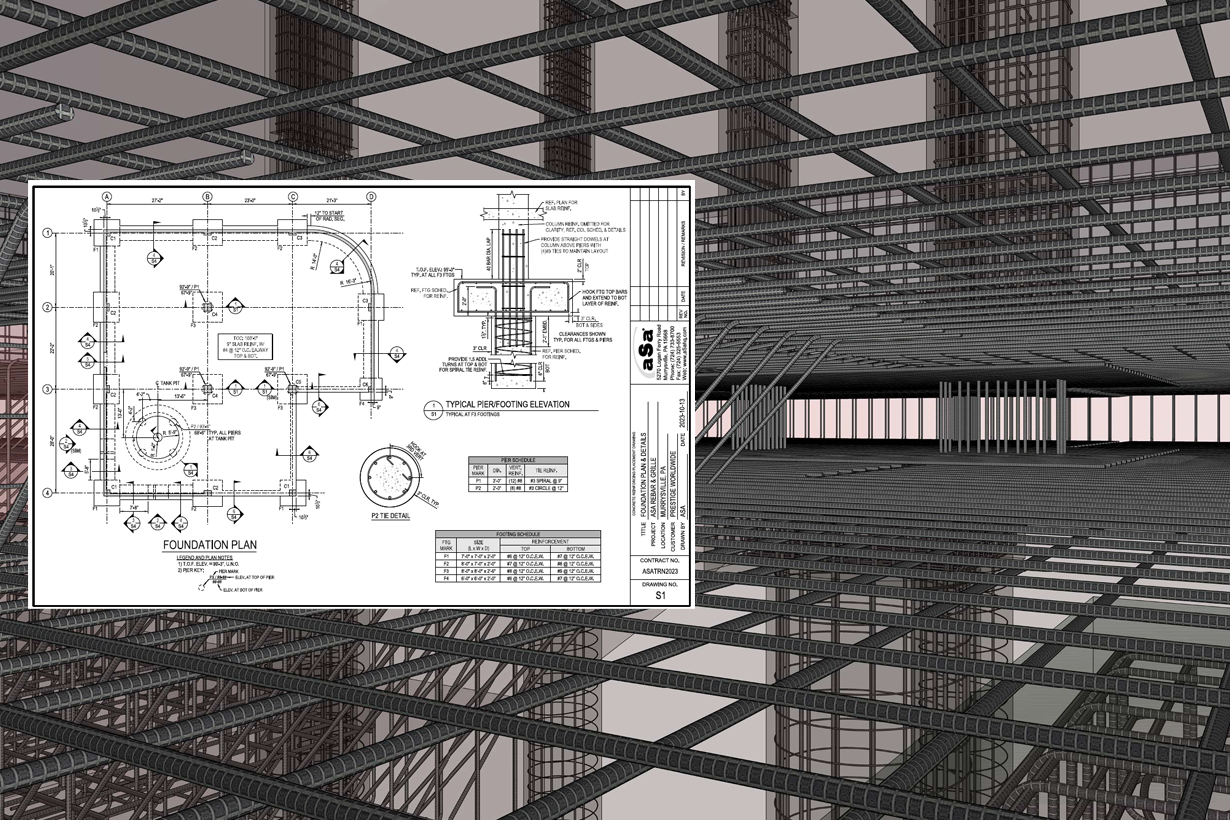

2D Details from 3D Models

2D Details from 3D Models

Easily devlop placing drawing from your ProRebar projects.

View ProRebar Brochure
